FERNO2 ‘DD’ and ‘EE’ Lite Carbon Fiber O2 Bottles are fully wrapped, carbon-fiber reinforced, aluminum lined vessels manufactured with highest grade aerospace materials. These products carry DOT regulatory approvals, including design and qualification certifications. The significant reduction in weight and greater capacity of these carbon fiber vessels means you can carry more oxygen to remote and austere POI locations or on board various transportation platforms.

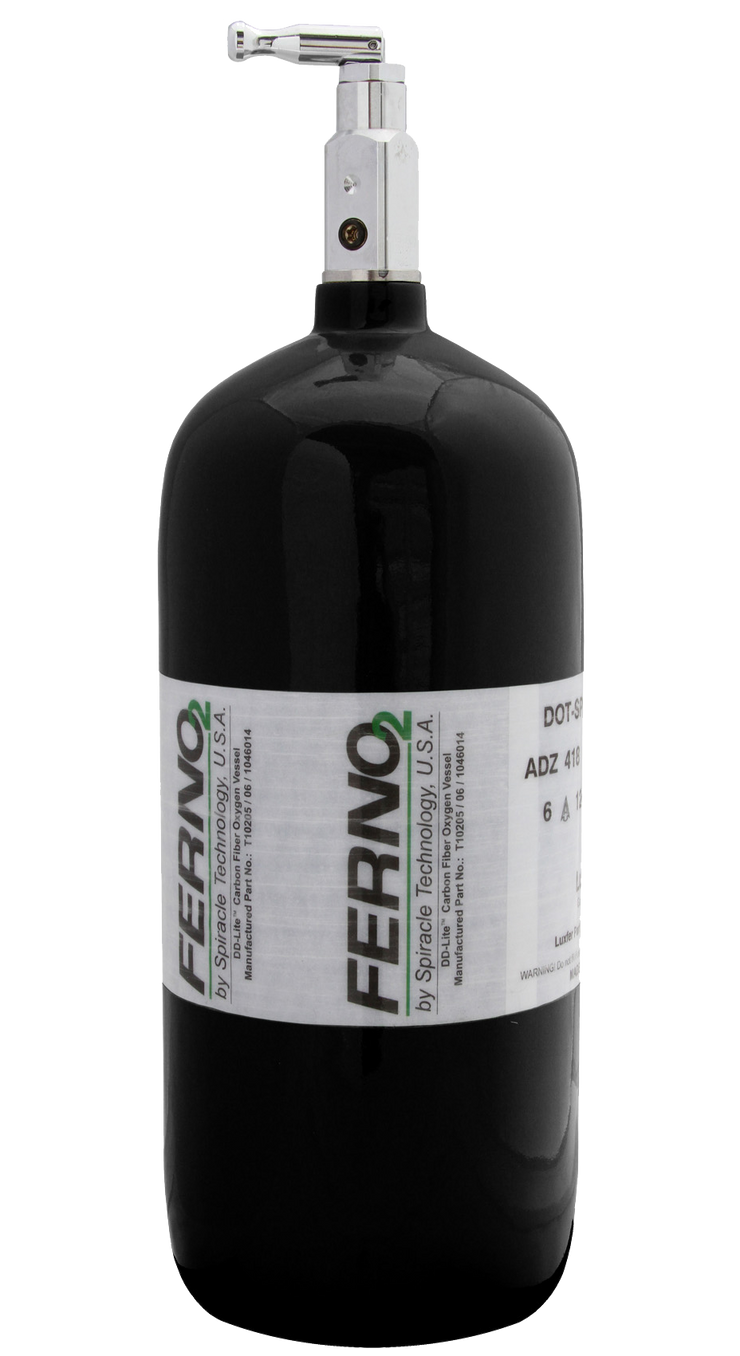

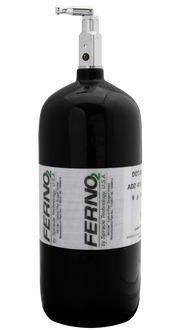

P/N FMFO2107 DD size CGA 870 Post Valve w Toggle
P/N FMFO2108 DD size CGA 540 Outlet

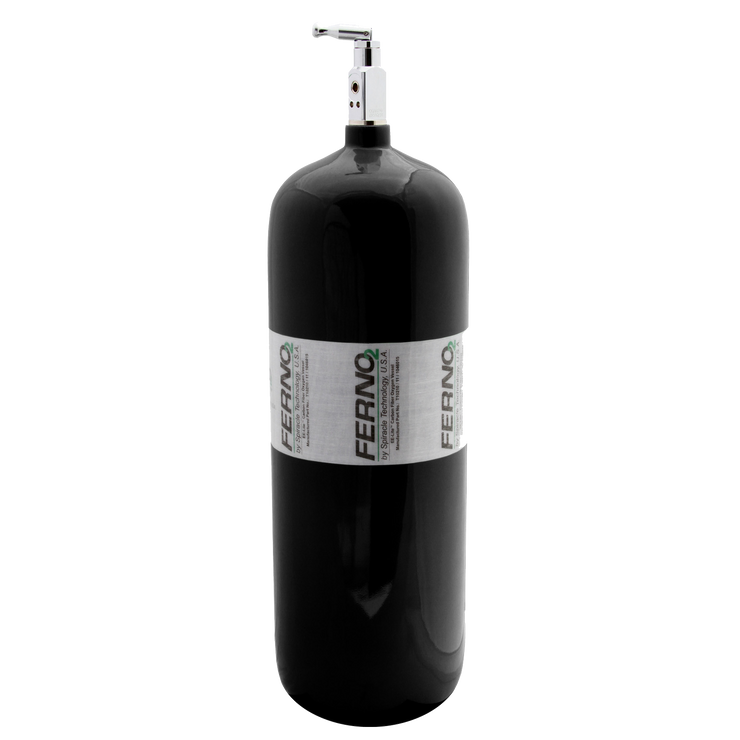

P/N FMFO2109 EE size CGA 870 Post Valve w Toggle
P/N FMFO2110 EE size CGA 540 Outlet
Features:
Increased Oxygen Capacity: The "EE"-Lite holds 1,377 liters of oxygen, two times the amount of oxygen in an aluminum "E" size cylinder.
Less Weight: A significant reduction in the weight of these carbon fiber vessels means you can carry more oxygen to remote locations, on board helicopters, up flights of stairs and in your ambulance.
Extend Oxygen Administration: Reduce the chances of running out of life-saving oxygen when administering oxygen during extended transport times and high flow use during resuscitation.
Multiple Applications: Ideal for search and rescue operations, mounting on a Ferno 35A+ and 93EX Squadmate, aeromedical transport, transport incubators, ventilators and even EMS bicycle fleets.
There are no changes in the way you currently care for and/or handle an oxygen vessel. Care for the fiber oxygen vessel just as you do your existing cylinders.
Safety: Structural analysis design/qualification certifications. Vessels underwent hydrostatic burst tests, ambient/environmental/thermal cycling test, drop test, gunfire (ballistic) and bonfire tests.
Construction consists of a seamless 6061-T6 alloy aluminum liner fully overwrapped with epoxy impregnated polyacrylonitrile, PAN-based carbon fibers. Manufactured using the highest grade aerospace materials.
Carries Department of Transportation (DOT) regulatory approvals, including design and qualification certifications. Model 210 "EE"-Lite Carbon Fiber Oxygen Cylinder with CGA 870 Post Valve with On/Off Toggle
Model 211 "EE"-Lite Carbon Fiber Oxygen Cylinder with CGA 540 Post Valve
